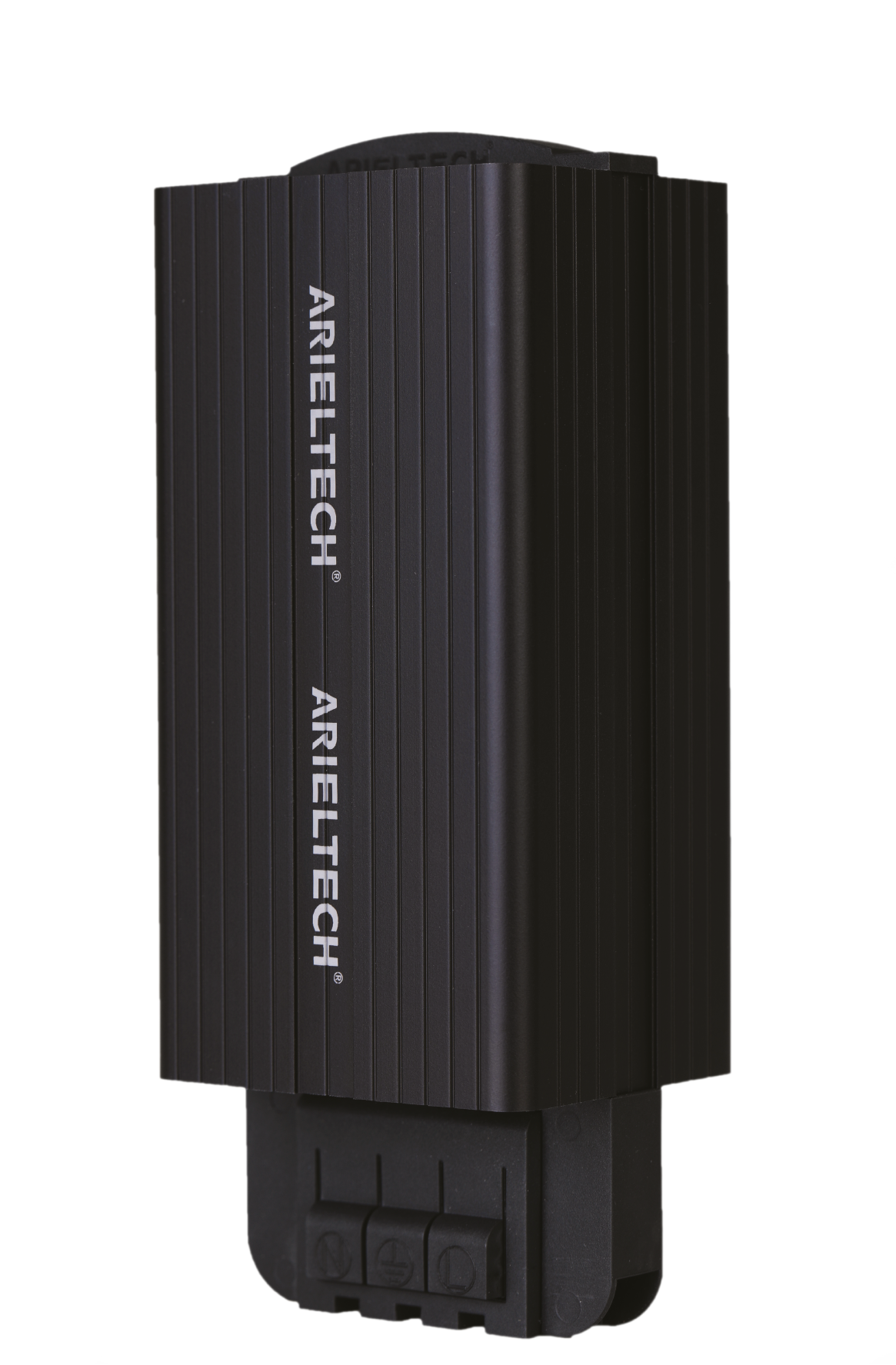

Heater Heatec Series
Certificates
• CE Complian
Application
Heater provides protection from condensation and low temperatures in Control Panels, Electronic Enclosures, Hydraulic and Pneumatic machinery
Features
- Safe, Reliable and consistent heat for long periods by means of PTC (Positive Temperature Coefficient) heater
- Highly efficient and low profile
- Connects easily with push connectors for 3 wires. From AWG 20 to AWG 16 (0.5 – 2.5 mm²).
- Built in safety feature prevents overheating
- Used with Normally Closed Thermostat and Hygrostat
- Black anodized aluminum housing
- Mounts easily on 35 mm DIN Rail EN 50 022
- Available in 30 Watt to 150 Watt
Color
- Black
Heater Technical Data
swipe table to view more
Heater | Power* | Voltage | Inrush Current | Dimensions | Weight | Max Temperature |
Model No. | (WATT) | (VAC/DC) | 110/220 VAC | mm (Inch) | KG(lb) | °C (°F) |
| HEATEC-035 | 35 | 110-240 | 1A/2.2A | 116x75x61 (4.57×2.95×2.4) | 0.5 (1.1) | 100 (212) |
| HEATEC-045 | 45 | 110-240 | 2A/4A | 116x75x61 (4.57×2.95×2.4) | 0.5 (1.1) | 110 (230) |
| HEATEC-060 | 60 | 110-240 | 2A/3A | 186x75x61 (7.32×2.95×2.4) | 0.7 (1.55) | 90 (194) |
| HEATEC-080 | 80 | 110-240 | 2A/4A | 186x75x61 (7.32×2.95×2.4) | 0.7 (1.55) | 100 (230) |
| HEATEC-100 | 100 | 110-240 | 5A/9A | 186x75x61 (7.32×2.95×2.4) | 0.7 (1.55) | 115 (240) |
| HEATEC-130 | 130 | 110-240 | 6A/10A | 236x75x61 (9.29×2.95×2.4) | 0.9 (2) | 110 (230) |
| HEATEC-150 | 150 | 110-240 | 7A/11.5A | 236x75x61 (9.29×2.95×2.4) | 0.9 (2) | 120 (250) |
Model No. | X | Y |
| HEATEC-035 | 78±0.5 mm | 10±1 mm |
| HEATEC-045 | ||
| HEATEC-060 | 148±0.5 mm | 50±0.5 mm |
| HEATEC-080 | ||
| HEATEC-100 | ||
| HEATEC-130 | 198±0.5 mm | 50±1 mm |
| HEATEC-150 |
